Aeromotive has developed Direct Drop-In Phantom Brushless Spur Gear Fuel Pumps for 2005-18 Chevrolet Silverado and GMC Sierra 1500-series trucks. The fuel pumps are designed to directly fit factory fuel tanks with 3.5 gallon-per-minute and 5.0 gallon-per-minute (GPM) flow rates.
Unique OEM-style brackets accommodate different applications and fuel level sending units. The pumps are engineered to deliver the proper fuel volume to high-performance street, off-road, and racing applications with easy installation when using the factory tank.
Both pump options come equipped with the True Variable Speed Controller, which helps extend the life of the pump and maximizes efficiency by decreasing fuel pump speed during low-demand periods. This is done by reducing the current draw and cycle rate, resulting in cooler fuel temperatures.
The 3.5 GPM Brushless Spur Gear Fuel Pump (PN 18087) can support naturally-aspirated gasoline applications up to 2,400 horsepower, naturally-aspirated E-85 ethanol applications up to 1,680 horsepower, forced-induction gasoline applications up to 1,800 horsepower and forced-induction E-85 ethanol applications up to 1,260 horsepower. For those looking for more flow, the 5.0 GPM Brushless Spur Gear Fuel Pump (PN 18088) supplies enough fuel for naturally-aspirated gasoline applications up to 3,400 horsepower, naturally-aspirated E-85 ethanol applications up to 2,380 horsepower, forced-induction gasoline applications up to 2,600 horsepower and forced-induction E-85 ethanol applications up to 1,820 horsepower.

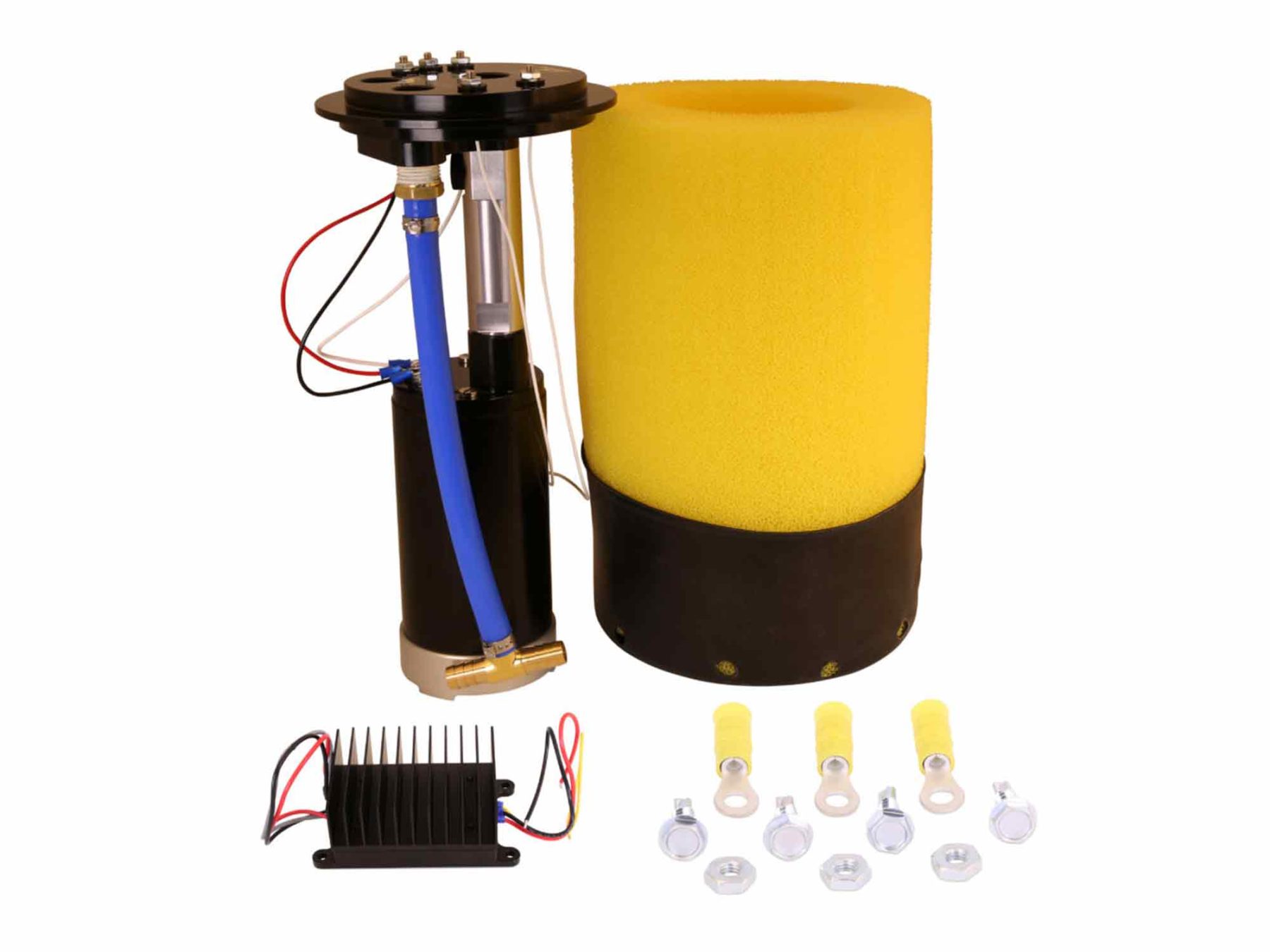

Aeromotive’s 3.5 and 5.0 GPM Direct Drop-In Brushless Spur Gear Fuel Pumps for 2005-18 GM 1500-series trucks come with built-in 100-micron inlet filters, ORB-10 outlets, and ORB-08 return and vent line sizes. Our patented Phantom foam and bladder technology are included with a remote-mounted True Variable Speed Controller.
Each pump is capable of flow rates up to 3.5 gallons-per-minute or 5.0 gallons-per-minute, respectively, at 13.5 volts. The 3.5 and 5.0 GPM Direct Drop-In Phantom Brushless Spur Gear Fuel Pumps are backed by Aeromotive’s one-year limited warranty. For more information on the Brushless Spur Gear Pump line and other products from Aeromotive, be sure to visit their website.
